Fiber Optic Cable External Line Design

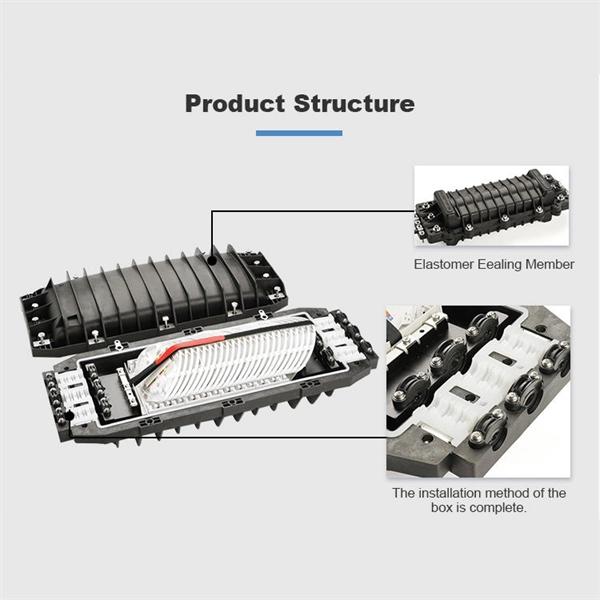

External fiber optic line design involves selecting appropriate cable types, planning routes, and ensuring environmental protection and network performance for outside plant (OSP) installations.Key Considerations in OSP Fiber Design1. Network Planning and Layout Designing an external fiber optic line begins with understanding the geographic layout and the type of communication system to be supported, whether for FTTH, FTTx, or enterprise networks. Designers must map backbone, distribution, and drop connections, considering both greenfield (new builds) and brownfield (existing infrastructure upgrades) projects. This includes planning for conduit, manholes, aerial poles, or direct burial routes, and ensuring compliance with local permits, easements, and regulations . 2. Cable Types and Selection The main cable families for OSP environments are:Loose Tube Cables: Fibers float in buffer tubes, reducing strain and providing low attenuation, ideal for harsh outdoor conditions .Ribbon Cables: High fiber counts with minimal excess fiber length, offering lower latency and faster mass fusion splicing for network restoration .Micro Loose Tube Cables: Compact, high-density cables suitable for congested ducts, reducing installation cost and disruption . Cable selection depends on environmental exposure (buried, aerial, or underwater), mechanical stresses, temperature ranges, moisture, and potential rodent damage . 3. Environmental and Mechanical Protection OSP cables must withstand tensile forces, bending, and environmental hazards. Direct-buried cables require robust jackets and water-blocking features, while aerial cables need strength members to handle continuous tension. Submarine or wet environments require specialized waterproofing . 4. Performance Considerations Designers prioritize low optical attenuation and signal latency. Loose tube designs provide low loss due to fiber strain isolation, while ribbon cables can slightly reduce latency due to minimal excess fiber length. High-performance fibers may be used for long-distance applications . 5. Installation Practices Proper installation involves careful pulling, splicing, and termination. Conduit systems often include innerducts for multiple cables, and aerial installations require secure attachment to poles or messenger wires. Testing and troubleshooting are essential to ensure network reliability . 6. Documentation and Maintenance Comprehensive documentation of cable routes, splice points, and network equipment is critical for future maintenance and restoration. Designers must coordinate with IT engineers, architects, and contractors to ensure all aspects of the project are integrated . 7. Standards and Compliance Designers must adhere to industry standards, local codes, and operator requirements. Knowledge of telecom technologies, site surveys, and regulatory processes ensures the network meets performance and safety standards .SummaryExternal fiber optic line design is a multidisciplinary process that balances cable selection, environmental protection, network performance, and regulatory compliance. By carefully planning routes, choosing the right cable type, and following best installation practices, designers can ensure a reliable, scalable, and high-performance OSP fiber network.
